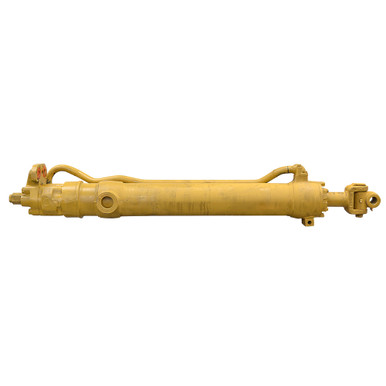

5" x 32.875" x 2.5" Double Acting Hydraulic Cylinder 73119696

5″ x 32.875″ x 2.5″ Double Acting Hydraulic Cylinder 73119696

Original price was: $499.95.Current price is: $99.99.

SKU: 902541 Category:

Description

5″ x 32.875″ x 2.5″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Model 73119696

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5″ x 32.875″
  • Barrel Thickness 0.253″
  • Gland Retainer Threaded in gland
  • Pressure 3000 PSI max.
  • Rod Dia. 2.5″
  • Ports 4 bolt 1″ code 61 flange size 16
  • Retracted Length 44.25″
  • Gland Face to Rod Pin Center 8″
  • Shpg. 282 lbs.
END MOUNTINGS
  • Rod End Cross-Tube
  • O.D. 2.68″
  • Width 3″
  • Pin Hole 1-1/4″
  • Base End Female Trunnion
  • Pin Outside/Inside Width 8″ / 5.625″
  • Pin-Center-To-Rod Pin Center 44.25″
  • Pin Center To Base End 17.75″
  • Pin Hole 2″
