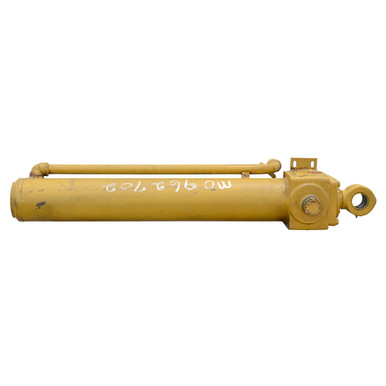

5" x 31.25" x 2.25" Double Acting Hydraulic Cylinder M0962702

5″ x 31.25″ x 2.25″ Double Acting Hydraulic Cylinder M0962702

Original price was: $399.95.Current price is: $79.99.

SKU: 904820 Category:

Description

5″ x 31.25″ x 2.25″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder M0962702. Piston seal leak by. Sold as is.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5″ x 31.25″
  • Barrel Thickness 0.371″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 2.25″
  • Extend Port 4 bolt 1″ code 61 flange size 16
  • Retract Port SAE 16
  • Retracted Length 7.25″ (trunnion)
  • Gland Face to Rod Pin Center 2.875″
  • Shpg. 221 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 2.78″
  • Pin-Center-To-Tang-End 2.25″
  • Pin Hole 2″
  • Base End Male Trunnion
  • Pin Outside/Inside Width 11.25″ / 7.5″
  • Pin-Center-To-Rod Pin Center 7.25″
  • Pin Center To Base End 38.5″
  • Pin Dia. 2.35″
