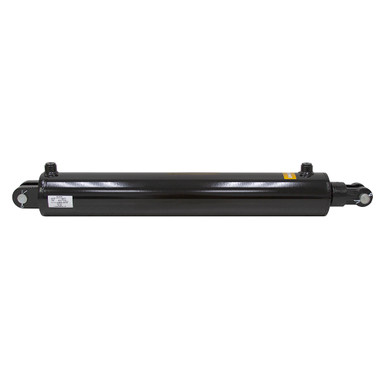

5" x 30" x 2.25" Double Acting Hydraulic Cylinder Prince CF-0149

5″ x 30″ x 2.25″ Double Acting Hydraulic Cylinder Prince CF-0149

Original price was: $499.95.Current price is: $99.99.

SKU: 905754 Category:

Description

5″ x 30″ x 2.25″ HYDRAULIC CYLINDER
New. PRINCE CF-0149 , welded, double acting hydraulic cylinder.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5″ x 30″
  • Gland Retainer Threaded in
  • Pressure 3000 PSI max.
  • Rod Dia. 2.25″
  • Rod Thickness 2.25″
  • Ports SAE 12
  • Retracted Length 42.25″
  • Gland Face to Rod Pin Center 4.478″
  • Shpg. 166 lbs.
END MOUNTINGS
  • Rod End Clevis
  • Outside Width 3.13″
  • Inside Width 1.38″
  • Throat Depth 2.16″
  • Pin Hole 1.25″
  • Base End Clevis
  • Outside Width 3.45″
  • Inside Width 1.38″
  • Throat Depth 2.13″
  • Pin Hole 1.25″
