Description

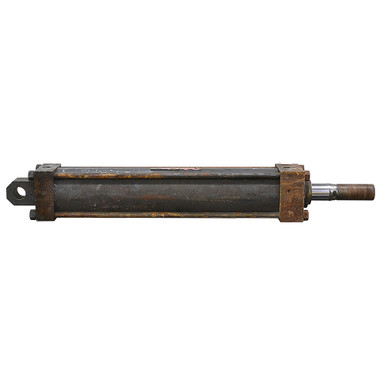

5″ x 23.75″ x 2.125″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. (Piston seals leak badly, rod end is badly rusted. Sold as is.) Hydro-Line numbers on cylinder S2C 5X24 1E8108-302-1B C-828-700.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 5″ x 23.75″
- Barrel Thickness 0.354″
- Gland Retainer Bolt on gland
- Pressure 3000 PSI
- Rod Dia. 2.125″
|
- Ports 3/4″ NPT
- Retracted Length 40.375″
- Gland Face to Rod Pin Center 5.5″
- Shpg. 198 lbs.
|
| END MOUNTINGS |
- Rod End Threaded
- Thread Size-Pitch 2″-12
- Thread Length 4.5″
|
- Base End Tang
- Thickness, Max 2.5″
- Pin-Center-To-Tang-End 1.55″
- Pin Hole 1-1/2″
|
