Description

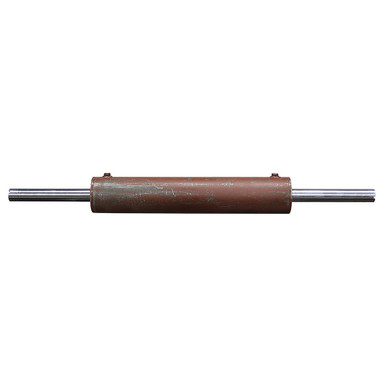

5″ x 22″ x 2″ DOUBLE ACTING DOUBLE ROD HYDRAULIC CYLINDER
Unused old inventory. Double acting double rod hydraulic cylinder. Cylinder rod ends are each counter bored and have two square notches 180 degrees from each other. Wardco numbers on cylinder 364 4001-4-0907-00.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 5″ x 22″
- Barrel Thickness 0.240″
- Gland Retainer Threaded in gland
- Pressure 3000 PSI max.
- Rod Dia. 2″
|
- Ports 1/4″ NPT
- Retracted Length 54.5″
- Gland Face to Rod Pin Center 12.5″
- Shpg. 113 lbs.
|
| END MOUNTINGS |
- Rod End Plane rod
- Counter Bore 1.5″ I.D. x 2.616″ deep
- Notch Dimensions 0.36″ x 0.36″ x 1/4″
|
- Base End Plane rod
- Counter Bore 1.5″ I.D. x 2.616″ deep
- Notch Dimensions 0.36″ x 0.36″ x 1/4″
|
