Description

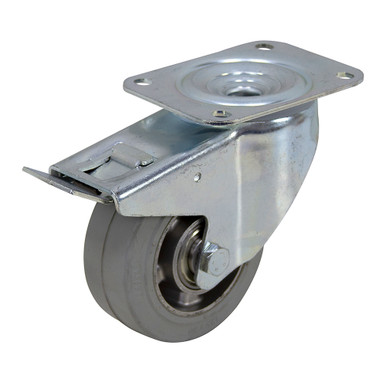

5″ x 2″ SWIVEL PLATE CASTER W/WHEEL AND DIRECTIONAL LOCK
New, TENTE model 3477IFP125P63 swivel plate caster with wheel and directional lock. Elastic-tire tread on cast aluminum wheel. Swivel plate has double-row ball bearings.
SPECIFICATIONS
- Model Number 3477IFP125P63
- Wheel Diameter 5″ dia.
- Wheel Width 2″ Wide
- Tread Width 1-3/4″ Wide
- Load Capacity 660 lbs.
- Mounting Height 6.34″
- Brake Wheel and Directional Lock
- Top Plate 5.39″ x 4.13″ x 0.13″ thick
- Mount 4 holes on 4.13″ x 3.15″ to 2.95″ centers
- Bolt Holes 0.43″ dia.
- Wheel Tread Material Elastic-Tire
- Wheel Tread Color Gray
- Caster Wheel Core Material Cast Aluminum
- Caster Wheel Bearing Ball
- Shpg. 7 lbs.
