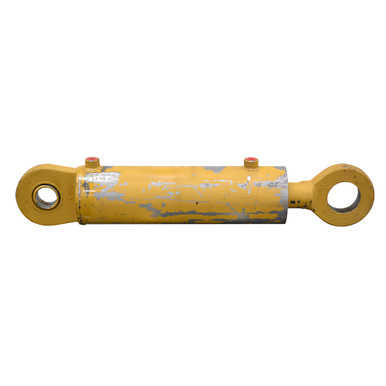

5" x 12.5" x 2.5" Double Acting Hydraulic Cylinder 61500 080006

5″ x 12.5″ x 2.5″ Double Acting Hydraulic Cylinder 61500 080006

Original price was: $249.95.Current price is: $62.49.

SKU: 905471 Category:

Description

5″ x 12.5″ x 2.5″ HYDRAULIC CYLINDER
Unused old inventory. Welded, double acting hydraulic cylinder, stamped 61500 080006.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5″ x 12.5″
  • Gland Retainer Snap ring
  • Pressure 2500 PSI max.
  • Rod Dia. 2.5″
  • Ports SAE 10
  • Retracted Length 28.5″
  • Gland Face to Rod Pin Center 5.75″
  • Shpg. 143 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 1.532″
  • Pin-Center-To-Tang-End 3″
  • Pin Hole 3.185″
  • Base End Swivel Eye
  • Width 1.513″
  • Pin-Center-To-Swivel Eye-End 3″
  • Swivel Eye Width 1.75″
  • Pin Hole 2″
