Description

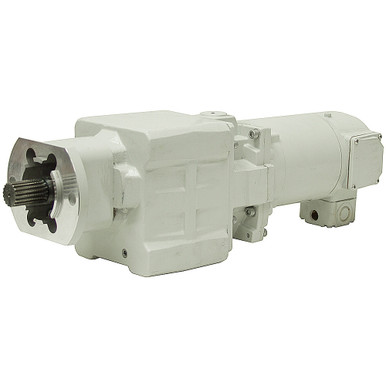

5 RPM 24 VOLT DC INLINE GEARMOTOR
NEW TAKE-OFF, SolFocus P/N 350-000062-000 permanent magnet inline gearmotor. Rated for 24 volts but will operate on 12 volts at reduced speed and output.
SPECIFICATIONS
- Brand SolFocus
- Model Number 350-000062-000
- Speed 5 RPM
- Voltage 24 Volt DC
- Amperage 4.2 Amps
- Power 1/10 Hp
- Torque 109 Nm (964.8 in.lbs.)
- Gear Ratio 266.3:1
- Rotation Reversible
- Duty Continuous
- Enclosure TENV
- Face Mount 2 bolt, 106mm (4.173″) bolt circle
- Mount Pilot 68mm (2.677″)
- Shaft 25mm (0.984″) dia. x 1-1/2″ long 18T spline DIN 5480
- Size 18.625″ x 5.1875″ x 6.25″
- Shpg. 40 lbs.
