Description

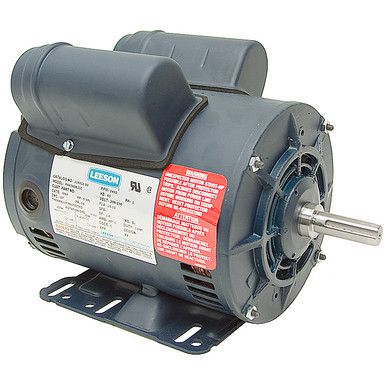

5 HP 3450 RPM 208-230 VOLT AC 56 FRAME COMPRESSOR DUTY MOTOR
Brand new, Leeson Electric model 116523.00 Special duty motor designed to replace motors on compressors. Motor is rated for a breakdown torque of 5 HP and a continuous compressor duty at 3 HP. Overload protection with manual reset. Steel frame and base. Welded base. Capacitor start/capacitor run.
Confirm your motor name plate data tag including voltage, amperage, speed, frame and shaft diameter to match this motor specifications for proper operation.
SPECIFICATIONS
- Brand Leeson
- Model 116523.00
- Power 5 HP Definite Purpose Special Compressor Duty
- Voltage 208-230 Volt AC
- Amperage 15 Amps
- Speed 3450 RPM
- Phase 1
- Rotation Reversible (prewired for CCW facing shaft)
- Service Factor 1.0
- Bearings Ball
- Enclosure ODP
- Duty Continuous Compressor Duty
- Frame 56
- Mount Base
- Shaft 5/8″ dia. x 1-7/8″ w/ 3/16″ keyway
- Size 9.25″ x 7″ x 8″
- Shpg. 34.65 lbs.
