Description

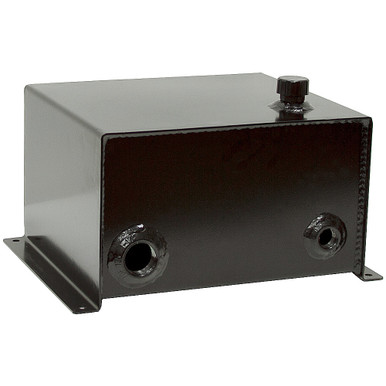

5 GALLON HYDRAULIC RESERVOIR
Brand new, superior quality hydraulic reservoir. Constructed of 12 gauge, black powder-coated steel. 3/4″ NPT fill port on top of reservoir with plastic thread-in breather. Integral mounting foot on each end. Drain port sealed with removable steel plug. Select a reservoir with capacity at least equal to pump flow GPM (e.g. 5 gallon reservoir capacity minimum for system with 5 GPM pump). Made in USA.
SPECIFICATIONS
- Capacity 5 gallons
- Ports:
1-1/4″ NPT x one
3/4″ NPT x two - Mount 4 bolts 15-1/2″ x 11-1/4″ C/C
- Mounting Holes 3/8″ dia.
- Tank Size W/O Feet Or Breather
14-1/4″ x 12-1/2″ x 8-5/8″ - Tank Height To Filler Cap Top 10-1/8″
- Foot-Print 16-3/4″ x 12-1/2″
- Shpg. 28 lbs.
