Sale!
5.9"(150mm) x 29.5"(750mm) x 3.15"(80mm) Double Acting Hydraulic Cylinder 6501482000

5.9″(150mm) x 29.5″(750mm) x 3.15″(80mm) Double Acting Hydraulic Cylinder 6501482000

Original price was: $449.95.Current price is: $89.99.

SKU: 904741 Category:

Description

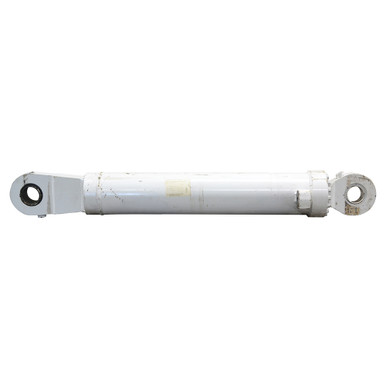

5.9″(150mm) x 29.5″(750mm) x 3.15″(80mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder 6501482000.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5.9″(150mm) x 29.5″(750mm)
  • Barrel Thickness 0.583″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 3.15″(80mm)
  • Ports 4 bolt 3/4″ code 62 flange size 12
  • Retracted Length 54.25″
  • Gland Face to Rod Pin Center 5.25″
  • Shpg. 410 lbs.
END MOUNTINGS
  • Rod End Swivel Eye
  • Width 2.31″
  • Pin-Center-To-Swivel Eye-End 3.48″
  • Swivel Eye Width 1.875″
  • Pin Hole 2.79″(70mm)
  • Base End Swivel Eye
  • Width 2.28″
  • Pin-Center-To-Swivel Eye-End 3.54″
  • Swivel Eye Width 2.63″
  • Pin Hole 2.79″(70mm)
