Description

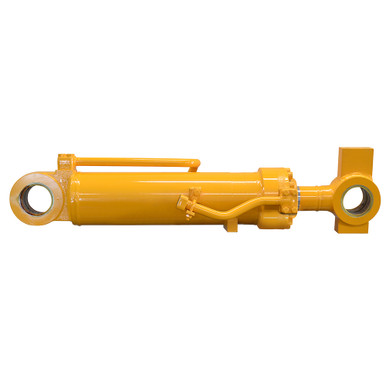

5.9″(150mm) x 18.75″(476mm) x 3.15″(80mm) DA HYD CYL
Unused old inventory. HYUNDAI double acting hydraulic cylinder. Numbers on cylinder 34L3-00034.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke5.9″(150mm) x 18.75″(476mm)
- Barrel Thickness 0.375″
- Gland Retainer Bolt on
- Pressure3000 PSI
- Rod Dia. 3.15″(80mm)
|
- Ports 4 bolt 3/4″ code 61 flange size 12
- Retracted Length39.5″
- Gland Face to Rod Pin Center 7.625″
- Shpg. 286 lbs.
|
| END MOUNTINGS |
|
- Rod End Tang
- Width 3.48″
- Pin-Center-To-Tang-End 3.07″
- Pin Hole 3.54″(90mm)
|
- Base End Tang
- Width 3.55″
- Pin-Center-To-Tang-End 3.24″
- Pin Hole 3.54″(90mm)
|
