Sale!
5.89"(150mm) x 18.875"(80mm) x 3.54"(90mm) Double Acting Hydraulic Cylinder 228935

5.89″(150mm) x 18.875″(80mm) x 3.54″(90mm) Double Acting Hydraulic Cylinder 228935

Original price was: $299.95.Current price is: $74.99.

SKU: 904603 Category:

Description

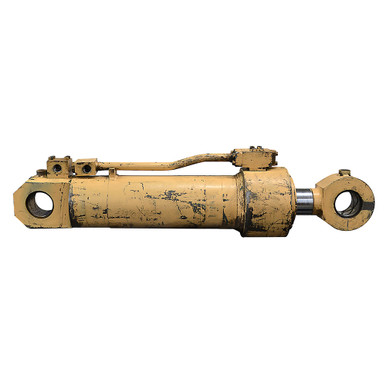

5.89″(150mm) x 18.875″(80mm) x 3.54″(90mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder 228935.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5.89″(150mm) x 18.875″(80mm)
  • Barrel Thickness 0.546″
  • Gland Retainer Threaded In gland
  • Pressure 3000 PSI
  • Rod Dia. 3.54″(90mm)
  • Ports 3/4″ NPT
  • Retracted Length 39.625″
  • Gland Face to Rod Pin Center 6.875″
  • Shpg. 395 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 3.73″
  • Pin-Center-To-Tang-End 3.54″
  • Pin Hole 3.15″(80mm)
  • Base End Tang
  • Width 3.73″
  • Pin-Center-To-Tang-End 3.54″
  • Pin Hole 3.15″(80mm)
