Description

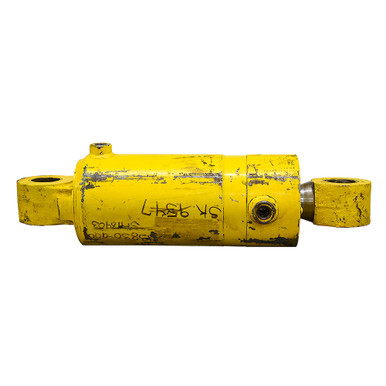

5.883″(150mm ) x 8″(203.2mm) x 2.75″(69.85mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Model 13830-000
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 150mm(5.883″) x 203.2mm(8″)
- Barrel Thickness 0.685″
- Gland Retainer Threaded In Gland
- Pressure 3000 PSI max.
- Rod Dia. 69.85mm(2.75″)
|
- Ports SAE 10
- Retracted Length 23.5″
- Shpg. 244 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Thickness, Max 3.25″
- Pin-Center-To-Tang-End 2.25″
- Pin Hole 2.25″
|
- Base End Tang
- Thickness, Max 3.25″
- Pin-Center-To-Tang-End 2.25″
- Pin Hole 2.25″
|
