5.71"(145mm) x 59.75"(1518mm) x 3.74"(95mm) Double Acting Hydraulic Cylinder Volvo 1040-95753

5.71″(145mm) x 59.75″(1518mm) x 3.74″(95mm) Double Acting Hydraulic Cylinder Volvo 1040-95753

Original price was: $1,149.95.Current price is: $229.99.

SKU: 904787 Category:

Description

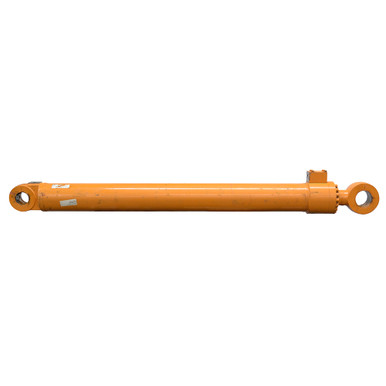

5.71″(145mm) x 59.75″(1518mm) x 3.74″(95mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. VOLVO double acting hydraulic cylinder. Numbers on cylinder 1040-95753.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5.71″(145mm) x 59.75″(1518mm)
  • Barrel Thickness 0.596″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 3.74″(95mm)
  • Extend Port 4 bolt flange with M10-1.5″ drilled and tapped holes on 1.57″ x 1.77″ centers with 0.988″ port hole
  • Retract Port 4 bolt 1″ code 61 flange size 16
  • Retracted Length 81.875″
  • Gland Face to Rod Pin Center 6.25″
  • Shpg. 655 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 3.94″
  • Pin-Center-To-Tang-End 3.91″
  • Pin Hole 3.94″(100mm)
  • Base End Tang
  • Width 3.94″
  • Pin-Center-To-Tang-End 3.39″
  • Pin Hole 3.15″(80mm)
