Description

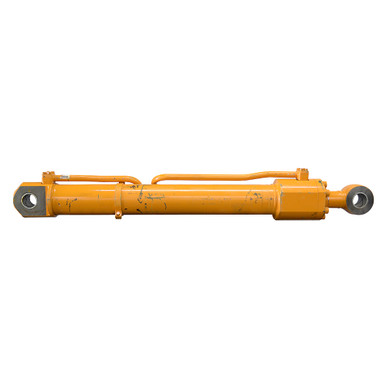

5.71″(145mm) x 45.69″(1160mm) x 3.74″(95mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. HYUNDAI double acting hydraulic cylinder. Numbers on cylinder 31W1-60020.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 5.71″(145mm) x 45.69″(1160mm)
- Barrel Thickness 0.394″
- Gland Retainer Bolt on
- Pressure 3000 PSI
- Rod Dia. 3.74″(95mm)
|
- Ports 4 bolt 3/4″ code 61 flange size 12
- Retracted Length 69.5″
- Gland Face to Rod Pin Center 7.375″
- Shpg. 589 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Width 4.16″
- Pin-Center-To-Tang-End 3.35″
- Pin Hole 2.95″(75mm)
|
- Base End Tang
- Width 4.15″
- Pin-Center-To-Tang-End 3.36″
- Pin Hole 2.76″(70mm)
|
