Description

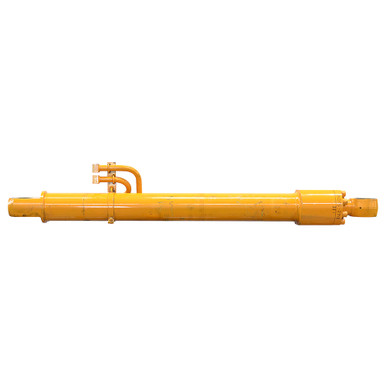

5.681″(145mm) x 56.5″(1447.8mm) x 3.736(95mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Hyundai numbers on cylinder 31E2-50210
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 5.681″(145mm) x 56.5″(1447.8mm)
- Barrel Thickness 0.396″
- Gland Retainer Bolt on gland
- Pressure 3000 PSI max.
- Rod Dia. 3.736″(95mm)
|
- Ports 4 bolt 1″ code 61 flange size 16
- Retracted Length 79.25″
- Gland Face to Rod Pin Center 5.25″
- Shpg. 541 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Thickness, Max 4.16″
- Pin-Center-To-Tang-End 3.17″
- Pin Hole 3-3/4″
|
- Base End Tang
- Thickness, Max 4.17″
- Pin-Center-To-Tang-End 3.41″
- Pin Hole 3″
|
