Description

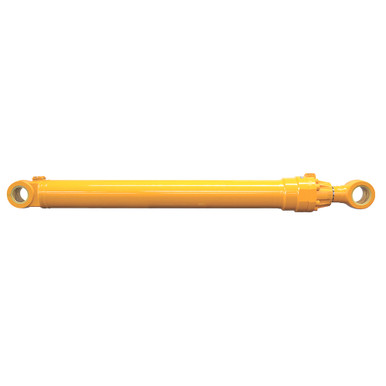

5.51″(140mm) x 52.97″(1345mm) x 3.74″(95mm) DA HYD CYL
Unused old inventory. HYUNDAI double acting hydraulic cylinder. Numbers on cylinder 31Y1-19810.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke5.51″(140mm) x 52.97″(1345mm)
- Barrel Thickness 0.5″
- Gland Retainer Bolt on
- Pressure3000 PSI
- Rod Dia. 3.74″(95mm)
|
- Extend Port 4 bolt 1″ code 62 flange size 16
- Retract Port 4 bolt 3/4″ code 62 flange size 12
- Retracted Length76.75″
- Gland Face to Rod Pin Center 6.625″
- Shpg. 616 lbs.
|
| END MOUNTINGS |
|
- Rod End Tang
- Width 4.56″
- Pin-Center-To-Tang-End 3.37″
- Pin Hole 3.94″(100m)
|
- Base End Tang
- Width 4.56″
- Pin-Center-To-Tang-End 3.3″
- Pin Hole 3.54″(90mm)
|
