Sale!

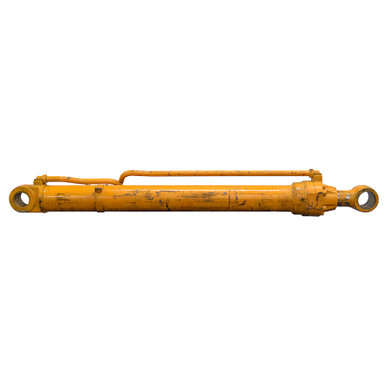

5.52"(140mm) x 57.625"(1464mm) x 3.94"(100mm) DA Hydraulic Cylinder

5.52″(140mm) x 57.625″(1464mm) x 3.94″(100mm) DA Hydraulic Cylinder

Original price was: $949.95.Current price is: $189.99.

SKU: 904937 Category:

Description

5.52″(140mm) x 57.625″(1464mm) x 3.94″(100mm) DA HYD CYL
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder 31E9-0006R.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke5.52″(140mm) x 57.625″(1464mm)
  • Barrel Thickness 0.433″
  • Gland Retainer Bolt on
  • Pressure3000 PSI
  • Rod Dia. 3.94″(100mm)
  • Ports 4 bolt 1″ code 61 flange size 16
  • Retracted Length82″
  • Gland Face to Rod Pin Center 7″
  • Shpg. 638 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 4.56″
  • Pin-Center-To-Tang-End 3.21″
  • Pin Hole 3.94″(100mm)
  • Base End Tang
  • Width 4.58″
  • Pin-Center-To-Tang-End 3.3″
  • Pin Hole 3.54″(90mm)
