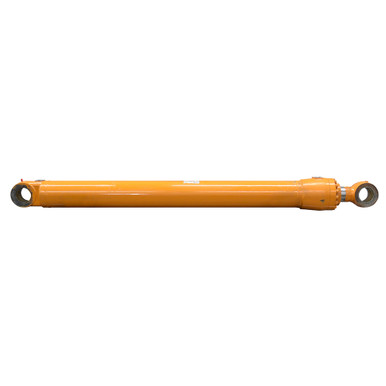

5.5"(140mm) x 58.25"(1480mm) x 3.73"(95mm) Double Acting Hydraulic Cylinder Volvo 1146-04630

5.5″(140mm) x 58.25″(1480mm) x 3.73″(95mm) Double Acting Hydraulic Cylinder Volvo 1146-04630

Original price was: $949.95.Current price is: $189.99.

SKU: 904661 Category:

Description

5.5″(140mm) x 58.25″(1480mm) x 3.73″(95mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. VOLVO numbers on cylinder 1146-04630.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5.5″(140mm) x 58.25″(1480mm)
  • Barrel Thickness 0.500″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 3.73″(95mm)
  • Ports 4 bolt 1″ code 61 flange size 16
  • Retracted Length 81.625″
  • Gland Face to Rod Pin Center 6.25″
  • Shpg. 598 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 4.7″
  • Pin-Center-To-Tang-End 2.96″
  • Pin Hole 3.55″(90mm)
  • Base End Tang
  • Width 4.32″
  • Pin-Center-To-Tang-End 3.02″
  • Pin Hole 3.55″(90mm)
