5.5"(140mm) x 52.25"(1334mm) x 3.54"(90mm) Double Acting Hydraulic Cylinder 10L938AZ604

5.5″(140mm) x 52.25″(1334mm) x 3.54″(90mm) Double Acting Hydraulic Cylinder 10L938AZ604

Original price was: $599.95.Current price is: $119.99.

SKU: 904597 Category:

Description

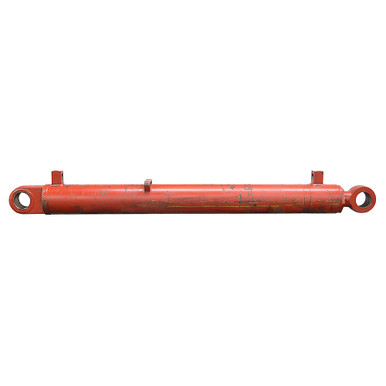

5.5″(140mm) x 52.25″(1334mm) x 3.54″(90mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder 10L938AZ604.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5.5″(140mm) x 52.25″(1334mm)
  • Barrel Thickness 0.587″
  • Gland Retainer Threaded in gland
  • Pressure 3000 PSI
  • Rod Dia. 3.54″(90mm)
  • Ports 1″ BSPP
  • Retracted Length 75.625″
  • Gland Face to Rod Pin Center 5″
  • Shpg. 525 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 3.34″
  • Pin-Center-To-Tang-End 3.02″
  • Pin Hole 3.55″(90mm)
  • Base End Tang
  • Width 3.34″
  • Pin-Center-To-Tang-End 2.99″
  • Pin Hole 3.55″(90mm)
