Description

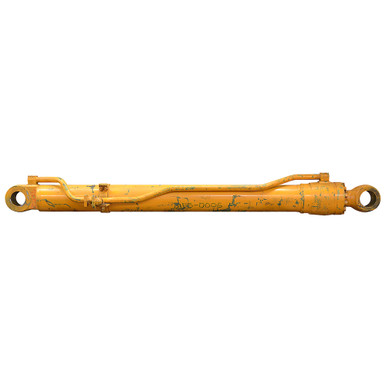

5.5″(139.7mm) x 58.25″(1479.55mm) x 3.93″(100mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Cylinder is left handed cylinder for 9-9050. Hyundai numbers on cylinder 31E5-0005.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 5.5″(139.7mm) x 58.25″(1479.55mm)
- Barrel Thickness 0.507″
- Gland Retainer Bolt on gland
- Pressure 3000 PSI
- Rod Dia. 3.93″(100mm)
|
- Ports 4 bolt 1″ code 61 flange size 16
- Retracted Length 84.25″
- Gland Face to Rod Pin Center 6.25″
- Shpg. 685 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Thickness, Max 4.55″
- Pin-Center-To-Tang-End 3.11″
- Pin Hole 3.95″(100mm)
|
- Base End Tang
- Thickness, Max 4.14″
- Pin-Center-To-Tang-End 3.23″
- Pin Hole 3.55″(90mm)
|
