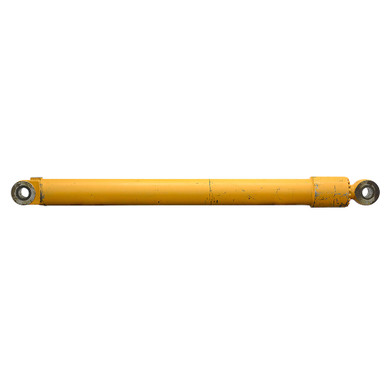

5.512" (140mm) x 63.375" x 3.543" (90mm) Double Acting Hydraulic Cylinder

5.512″ (140mm) x 63.375″ x 3.543″ (90mm) Double Acting Hydraulic Cylinder

Original price was: $1,049.95.Current price is: $209.99.

SKU: 904017 Category:

Description

5.512″ (140mm) x 63.375″ x 3.543″ (90mm) DOUBLE ACTING HYDRAULIC CYLINDER
New, welded cylinder with bolt-on gland cap.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 140mm (5.512″) x 63-3/8″
  • Barrel Thickness 15mm (0.591″)
  • Pressure 3000 PSI max.
  • Rod Dia. 90mm (3.543″)
  • Extend Port 0.964″ I.D. port in square flange w/ 10mm bolt holes on 45mm x 40mm centers
  • Retract Port 0.964″ I.D. port with additional 0.391″ cushion port in manifold pad w/ 10mm bolt holes on 76mm x 45mm centers
  • Retracted Length 85-7/8″
  • Shpg. 680 lbs.
END MOUNTINGS
  • Rod End Tang
  • Max Thickness 3-15/16″
  • Pin Center to Tang End 3-3/8″
  • Pin Hole 65mm (2.559″)
  • Base End Tang
  • Max Thickness 3-15/16″
  • Pin Center to Tang End 3-3/16″
  • Pin Hole 65mm (2.559″)
