Description

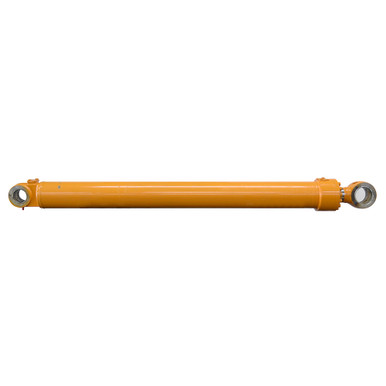

5.51″(140mm) x 59.84″(1520mm) x 3.74″(95mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 5.51″(140mm) x 59.84″(1520mm)
- Barrel Thickness 0.5″
- Gland Retainer Bolt on
- Pressure 3000 PSI
- Rod Dia. 3.74″(95mm)
|
- Ports 4 bolt 1″ code 61 flange size 16
- Retracted Length 81.875″
- Gland Face to Rod Pin Center 5.625″
- Shpg. 577 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Width 3.92″
- Pin-Center-To-Tang-End 3.39″
- Pin Hole 3.94″(100mm)
|
- Base End Tang
- Width 3.87″
- Pin-Center-To-Tang-End 2.98″
- Pin Hole 3.15″(80mm)
|
