Description
5.51″(140mm) x 57.125″(1451mm) x 3.74″(95mm) DA HYD CYL

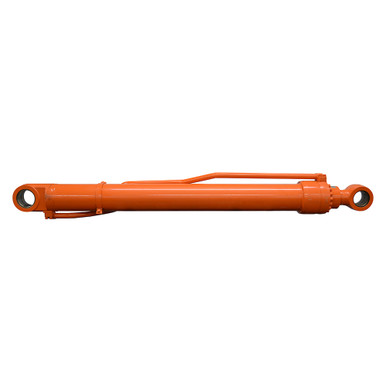

Unused old inventory. DOOSAN double acting hydraulic cylinder. Numbers on cylinder 400309-00003B.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke5.51″(140mm) x 57.125″(1451mm)
- Barrel Thickness 0.5″
- Gland Retainer Bolt on
- Pressure3000 PSI
- Rod Dia. 3.74″(95mm)
|
- Ports 4 bolt 1″ code 61 flange size 16
- Retracted Length79.25″
- Gland Face to Rod Pin Center 5.375″
- Shpg. 662 lbs.
|
| END MOUNTINGS |
|
- Rod End Tang
- Width 4.07″
- Pin-Center-To-Tang-End 3.17″
- Pin Hole 3.54″(90mm)
|
- Base End Tang
- Width 4.04″
- Pin-Center-To-Tang-End 3.35″
- Pin Hole3.94″(100mm)
|
