Description

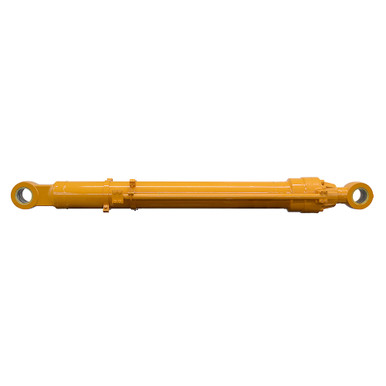

5.51″(140mm) x 50.59″(1285mm) x 3.94″(100mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. HYUNDAI double acting hydraulic cylinder. Numbers on cylinder 31E5-65010.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 5.51″(140mm) x 50.59″(1285mm)
- Barrel Thickness 0.5″
- Gland Retainer Bolt on
- Pressure 3000 PSI
- Rod Dia. 3.94″(100mm)
|
- Ports 4 bolt 1″ code 61 flange size 16
- Retracted Length 78.75″
- Gland Face to Rod Pin Center 5.75″
- Shpg. 698 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Width 4.16″
- Pin-Center-To-Tang-End 3.98″
- Pin Hole 3.54″(90mm)
|
- Base End Tang
- Width 4.16″
- Pin-Center-To-Tang-End 3.27″
- Pin Hole 3.54″(90mm)
|
