Description
5.51″(140mm) x 35.625″(905mm) x 2.76″(70mm) DA HYD CYL

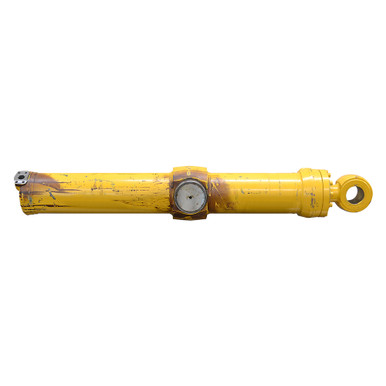

Unused old inventory. VOLVO double acting hydraulic cylinder. Numbers on cylinder VOE4833268.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke5.51″(140mm) x 35.625″(905mm)
- Barrel Thickness 0.379″
- Gland Retainer Bolt on
- Pressure3000 PSI
- Rod Dia. 2.76″(70mm)
|
- Ports 4 bolt 1″ code 61 flange size 16
- Retracted Length25.375″
- Gland Face to Rod Pin Center 4.375″
- Shpg. 320 lbs.
|
| END MOUNTINGS |
|
- Rod End Tang
- Width 3.42″
- Pin-Center-To-Tang-End 2.92″
- Pin Hole 2.76″(70mm)
|
- Base End Male Trunnion
- Pin Outside/Inside Width 10.625″ /6.75″
- Pin-Center-To-Rod Pin Center 25.375″
- Pin Center To Base End 25.75″
- Pin Dia.4.72″(120mm)
|
