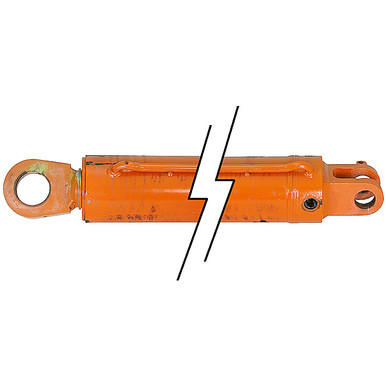

5.5" x 58" x 3.5" Double Acting Hydraulic Cylinder w/Counterbalance Valve

5.5″ x 58″ x 3.5″ Double Acting Hydraulic Cylinder w/Counterbalance Valve

Original price was: $599.95.Current price is: $119.99.

SKU: 902549 Category:

Description

5.50″ x 58″ x 3.50″ DOUBLE ACTING HYDRAULIC CYLINDER
New, welded hydraulic cylinder with thread-in gland retainer. Superficial rust on cartridge valve and valve cavity from storage. Transfer tube, both ports at base end. 7/16″ barrel tubing thickness. SUN model CBEA-LHN counter-balance valve with 3:1 pilot ratio, rated for 30 GPM, set to 4000 PSI, allen screw adjustment. Clevis can accept a 1/2″ cross-bolt to retain clevis pin. Eye in tang made to accept a spherical bushing (not included).

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5-1/2″ x 58″
  • Pressure 3000 PSI max.
  • Rod Dia. 3-1/2″
  • Ports SAE 12
  • Retracted Length 76-7/8″
  • Shpg. 445 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 5-1/2″
  • Thickness 1-9/16″
  • Pin-Center-To-Tang-End 2-3/4″
  • Pin Hole 3-3/16″
  • Base End Clevis
  • Outside Width 4″
  • Inside Width 1-7/8″
  • Throat Depth 2-7/16″
  • Pin Hole 2″
