Description

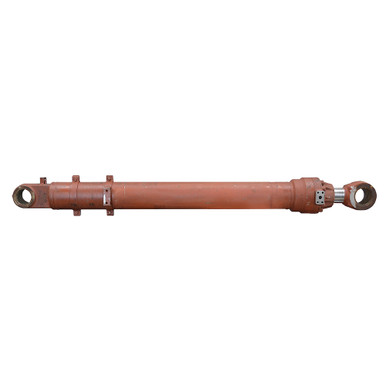

5.5″ x 54.375″ x 3.75″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder 731-4036
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 5.5″ x 54.375″
- Barrel Thickness 0.492″
- Gland Retainer Bolt on gland
- Pressure 3000 PSI max.
- Rod Dia. 3.75″
|
- Ports 4 bolt 1″ code 61 flange size 16
- Retracted Length 79.75″
- Gland Face to Rod Pin Center 7″
- Shpg. 600 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Thickness, Max 4.71″
- Pin-Center-To-Tang-End 3.33″
- Pin Hole 4″
|
- Base End Tang
- Thickness, Max 4.71″
- Pin-Center-To-Tang-End 2.62″
- Pin Hole 3-1/2″
|
