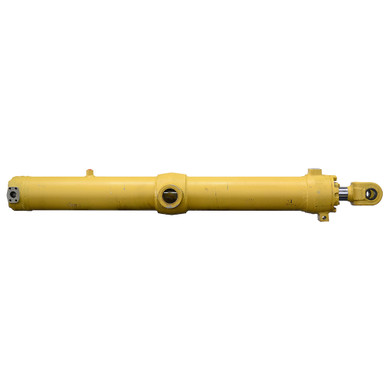

5.5" x 43" x 2.5" Double Acting Hydraulic Cylinder Fiat-Allis 73061479

5.5″ x 43″ x 2.5″ Double Acting Hydraulic Cylinder Fiat-Allis 73061479

Original price was: $399.95.Current price is: $79.99.

SKU: 904883 Category:

Description

5.5″ x 43″ x 2.5” DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. FIAT-ALLIS double acting hydraulic cylinder. Numbers on cylinder 73061479. Cylinder does not have valving for base end.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5.5″ x 43″
  • Barrel Thickness 0.25″
  • Gland Retainer Threaded in
  • Pressure 3000 PSI
  • Rod Dia. 2.5″
  • Ports 4 bolt 1″ code 61 flange size 16
  • Retracted Length 34″ (trunnion)
  • Gland Face to Rod Pin Center 5.5″
  • Shpg. 280 lbs.
END MOUNTINGS
  • Rod End Clevis
  • Outside Width 5.37″
  • Inside Width 3.08″
  • Throat Depth 3.5″
  • Pin Hole 1-1/2″
  • Base End Female Trunnion
  • Pin Outside/Inside Width 10.25″ / 6″
  • Pin-Center-To-Rod Pin Center 34″
  • Pin Center To Base End 28.5″
  • Pin Hole 2.52″(64mm)
