5.5" x 37.375" x 2.5" Double Acting Hydraulic Cylinder 70647247

5.5″ x 37.375″ x 2.5″ Double Acting Hydraulic Cylinder 70647247

Original price was: $399.95.Current price is: $79.99.

SKU: 902554 Category:

Description

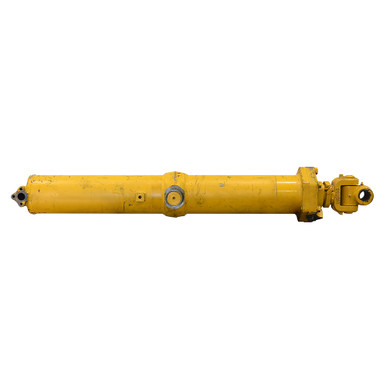

5.5″ x 37.375″ x 2.5″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder 70647247.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5.5″ x 37.375″
  • Barrel Thickness 0.259″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 2.5″
  • Ports 3 bolt flange. Bolt holes are drilled and tapped 3/8″-16, 1.227″ deep on 1.59″ centers. Port hole size is 1.125″
  • Retracted Length 29.5″
  • Gland Face to Rod Pin Center 5.25″
  • Shpg. 244 lbs.
END MOUNTINGS
  • Rod End Double swivel link
  • O.D. 3″
  • Width 4″
  • Outside Width 4.825″
  • Pin Hole 1-1/2″
  • Base End Male Trunnion
  • Pin Outside/Inside Width 10.75″ / 8″
  • Pin-Center-To-Rod Pin Center 29.5″
  • Pin Center To Base End 22.5″
  • Pin Diameter 2.5″
