Description
5.494″(140mm) x 56.718″(1440mm) x 3.742″(95mm) HYD CYL

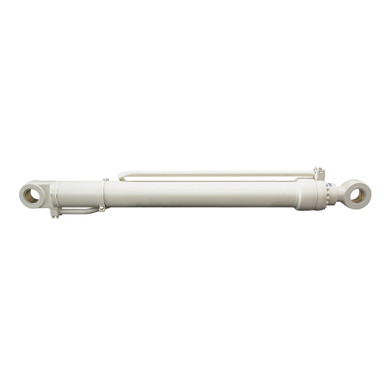

Unused old inventory. DOOSAN 440-00547, welded, double acting hydraulic cylinder.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 5.494″(140mm) x 56.718″(1440mm)
- Gland Retainer Bolt-on
- Pressure 2500 PSI max.
- Rod Dia. 3.742″(95mm)
- Rod Thickness 3.742″(95mm)
|
- Ports CODE 61 FLANGE 16
- Retracted Length 78.75″
- Gland Face to Rod Pin Center 5.25″
- Shpg. 663 lbs.
|
| END MOUNTINGS |
|
- Rod End Tang
- Width 3.846″
- Pin-Center-To-Tang-End 3.547″
- Pin Hole 3.544″(90mm)
|
- Base End Tang
- Width 3.846″
- Pin-Center-To-Tang-End 3.351″
- Pin Hole 3.544″(90mm)
|
