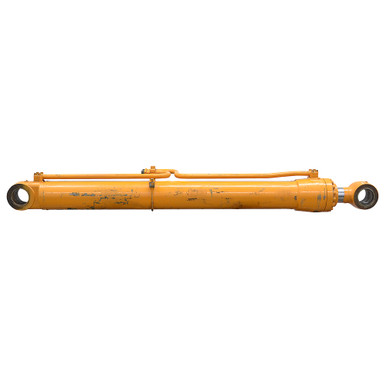

5.28"(135mm) x 52.875"(1343.03mm) x 3.54"(90mm) Double Acting Hydraulic Cylinder Samsung 1146-00700

5.28″(135mm) x 52.875″(1343.03mm) x 3.54″(90mm) Double Acting Hydraulic Cylinder Samsung 1146-00700

Original price was: $499.95.Current price is: $99.99.

SKU: 904477 Category:

Description

5.28″(135mm) x 52.875″(1343.03mm) x 3.54″(90mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Samsung Excavators Corporation numbers on cylinder 1146-00700.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5.28″(135mm) x 52.875″(1343.03mm)
  • Barrel Thickness 0.502″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 3.54″(90mm)
  • Ports ORFS 16
  • Retracted Length 76″
  • Gland Face to Rod Pin Center 6.5″
  • Shpg. 550 lbs.
END MOUNTINGS
  • Rod End Tang
  • Thickness, Max 4.71″
  • Pin-Center-To-Tang-End 2.97″
  • Pin Hole 3.55″(90mm)
  • Base End Tang
  • Thickness, Max 4.33″
  • Pin-Center-To-Tang-End 2.96″
  • Pin Hole 3.58″(90mm)
