Description

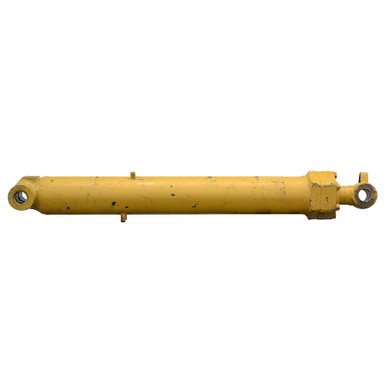

5.12″(140mm ) x 40.75″(1035.05mm) x 3.14961″(80mm) DOUBLE ACTING HYDRAULIC CYLINDER
Old unused inventory. Double acting hydraulic cylinder.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 140mm (5.12″) x 1035.05mm (40.75″)
- Barrel Thickness 9.9314mm (0.391″)
- Gland Retainer Bolt on gland
- Pressure 3000 PSI max.
- Rod Dia. 80mm (3.14961″)
|
- Flange Port 4 bolt 1″ 61 Flange size 16
- Retracted Length 1419.225mm (55.875″)
- Shpg. 300 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Thickness, Max 82.5mm (3.25″)
- Pin-Center-To-Tang-End 57.15mm (2.25″)
- Pin Hole 50.8mm (2″)
|
- Base End Cross-Tube
- O.D. 107.95mm (4.25″)
- Width 171.45mm (6.75″)
- Pin Hole 50.8mm (2″)
|
