5.12"(130mm) x 50.625"(1286mm) x 3.54"(90mm) Double Acting Hydraulic Cylinder Komatsu 206-63-03100

5.12″(130mm) x 50.625″(1286mm) x 3.54″(90mm) Double Acting Hydraulic Cylinder Komatsu 206-63-03100

Original price was: $599.95.Current price is: $119.99.

SKU: 904818 Category:

Description

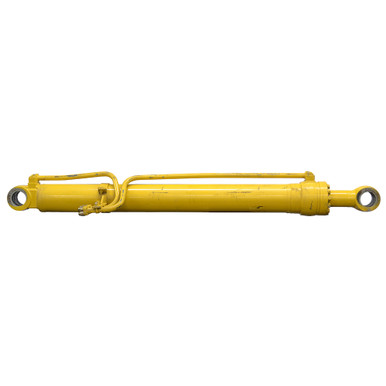

5.12″(130mm) x 50.625″(1286mm) x 3.54″(90mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. KOMATSU double acting hydraulic cylinder. Numbers on cylinder 206-63-03100.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5.12″(130mm) x 50.625″(1286mm)
  • Barrel Thickness 0.482″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 3.54″(90mm)
  • Ports 4 bolt 3/4″ code 61 flange size 12
  • Retracted Length 73.625″
  • Gland Face to Rod Pin Center 8.5″
  • Shpg. 477 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 3.79″
  • Pin-Center-To-Tang-End 2.76″
  • Pin Hole 3.15″(80mm)
  • Base End Tang
  • Width 3.77″
  • Pin-Center-To-Tang-End 2.75″
  • Pin Hole 3.15″(80mm)
