Description
RIGHT ANGLE GEAR DRIVE

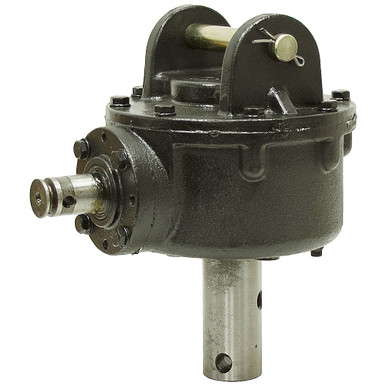

Brand new, OMNI GEAR model PHD26HD vertical, right angle gearbox. Originally manufactured for PTO driven post hole digger systems. Tapered roller bearings. Spring loaded triple lip seals. Clockwise input rotation gives clockwise output rotation. Cast iron housing. Designed to free hang from a supporting structure or boom that is connected to it with a 7/8″ diameter pin at the top of the gearbox housing. Four 3/8″-16 tapped holes on 3-3/8″ diameter B.C. to mount input shaft shield and four 3/8″-16 tapped holes on 4-1/8″ diameter B.C. to mount ouput shaft shield. Ships without oil, user must add oil prior to use per user ‘smanual.
Specifications
- 2.92:1 gear ratio
- 44 Hp input max.
- 540 RPM input max.
- 5133 lb.-in. max. torque
- 38 oz. oil capacity
- Inner width of mounting ears 4-1/4″
- Throat depth of pin is 1-3/16″
- Input shaft 1-1/4″ dia. x 2″ smooth w/ 5/16″ dia. pin hole
- Output shaft 2″ x 4-3/8″ smooth shaft w/ two 1/2″ dia. pin holes 2-3/4″ and 3-3/4″ bearing to center hole
- Size 9-1/2″ x 8-1/4″ x 7-5/8″
- Shpg. 51 lbs.
