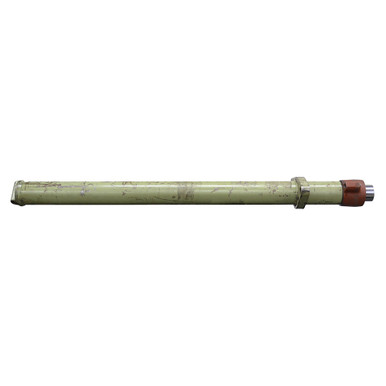

4″ x 60.75″ x 3.25″ SINGLE ACTING DISPLACEMENT MAST HYDRAULIC CYLINDER
Unused old inventory. Welded, single acting displacement, hydraulic mast cylinder. Two bolt flange mount on base end.
| SPECIFICATIONS |
- Single Acting
- Bore x Stroke 4″ x 60.75″
- Gland Retainer Externally threaded
- Pressure 2500 PSI max.
- Rod Dia. 3.25″
|
- Work Port SAE 12
- Bleeder Port 3/4″ NPT
- Retracted Length 13.375″
- Gland Face to Rod Pin Center 2″
- Shpg. 308 lbs.
|
| END MOUNTINGS |
|
|
- Base End Two Bolt Mounting Flange
- Flange Width 11.375″
- Flange Thickness 1.559″
- Bolt Hole 1″ O.D.
- Holes Spacing 9.375″ centers
|
