Description
Old Inventory Piston seals leak by. Sold as is.

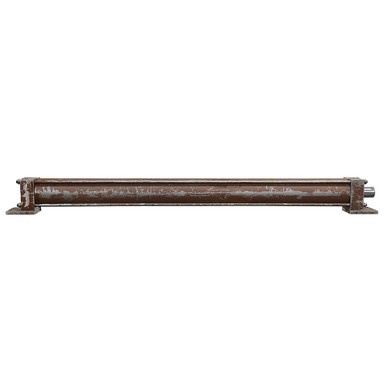

4″ x 48″ x 1.75″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. CCI double acting hydraulic cylinder. Numbers on cylinder CCI140. Rod end to base end mounting plates center hole distance 58″. Piston seals leak by.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 4″ x 48″
- Barrel Thickness 0.25″
- Gland Retainer Tie-rod
- Pressure 2500 PSI
- Rod Dia. 1.75″
|
- Ports 3/4″ NPT
- Retracted Length 58″
- Gland Face to Rod Pin Center 2″
- Shpg. 141 lbs.
|
| END MOUNTINGS |
- Rod End Tapped
- Thread Size-Pitch 7/8″-14 TPI
- Thread Depth 1.5″
- Mounting Plate 4-1/2″ x 5″ x 1/2″ w/ two 0.67″ holes on 3-3/8″ centers
|
- Base End Flat
- Mounting Plate 4-1/2″ x 5″ x 1/2″ w/ two 0.67″ holes on 3-3/8″ centers
|
