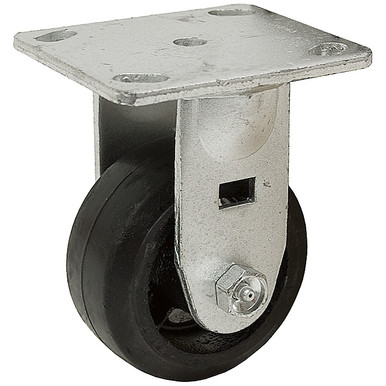

4″ x 2″ Rigid Plate Caster Rubber Tire On Cast Iron Wheel WC6640R-01-RCI

Description

4″ X 2″ RIGID PLATE CASTER
Brand new, WC6640R-01-RCI rubber tire on cast iron wheel rigid plate caster. Case hardened double ball raceways provide extra capacity and durability. Top plate and legs are made out of 1/4″ cold forged steel and corrosion-resistant zinc plated finish. 5/8″ nut and bolt kingpin and 2-1/2″ for spacing with 1/2″ zerk axle and lock nut. Tread is a high quality cushion rubber, chemically bonded to the painted cast iron core. Provides excellent shock loading, dampens vibration, and provides a quite ride. Soft rubber tread helps the equipment it’s attached to, roll over debris, and uneven floor conditions.

SPECIFICATIONS

• Model WC6640R-01-RCI
• Wheel Diameter 4″
• Wheel Width 2″
• Load Capacity 350 lbs.
• Mounting height 5-5/8″
• Top Plate 4″ x 4-1/2″ x 1/4″ thick
• Mount 2-5/8″ x 3-5/8″ slotted to 3″ x 3″ centers
• Bolt Holes 3/8″
• Wheel Tread Material Rubber
• Wheel Tread Color Black
• Wheel Tread Durometer 60-80 Shore A
• Wheel Core Material Cast iron
• Wheel Bearing Roller
• Wheel Temperature Rating -40ºF to 180ºF
• Shpg. 7 lbs.
