Description

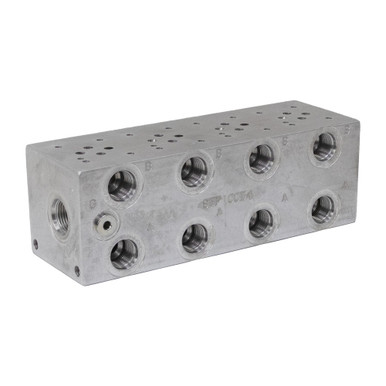

4 STATION D03 MANIFOLD
Brand new, machined aluminum subplate. Four station series circuit (for open center valves) manifold to mount four D03 valves. Inlet port at one end, outlet at the opposite.
SPECIFICATIONS
- Brand Source Fluid Power
- Model SFP10054
- Material 6061-T6 Aluminum
- Style D03
- Stations 4
- Circuit Series
- Pressure Rating 3000 PSI
- In Port SAE 10
- Out Port SAE 12
- Work Ports SAE 8
- Gauge Port SAE 4
- Valve Mounts Four holes tapped 10-24
- Subplate Mount Two threaded 5/16″-18 TPI holes on each side on 2-3/8″ centers
- Size 8.875″ x 3″ x 3.125″
- Shpg. 9 lbs.
Mounting Bracket Kit
| Mounting Bracket Kit for D03 Manifolds Source Fluid Power SFP10081 |
906205 |
Cover Plate
| D03 Cover Plate Source Fluid Power SFP10089 |
906315 |
Screw for Mounting Solenoid Valve to Manifold
| 10-24 x 1.25″ Grade 8 Socket Cap Screw |
903986 |
Compatible Solenoid Valves
| 12 Volt DC 10 GPM Double Acting Tandem Center Solenoid Valve Eaton-Vickers DG4V-3-8C-VM-U-G7-61 |
901041 |
| 12 Volt DC 10 GPM Motor Spool Open Center Solenoid Valve Eaton-Vickers DG4V-3-0C-M-U-G7-60 |
901042 |
| 120 Volt AC 10 GPM Double Acting Tandem Center Solenoid Valve Eaton-Vickers DG4V-3-8C-VM-U-B6-61 |
901796 |
| 120 Volt AC 10 GPM Motor Spool Open Center Solenoid Valve Eaton-Vickers DG4V-3-0C-VM-U-B6-60 |
901797 |
