Description

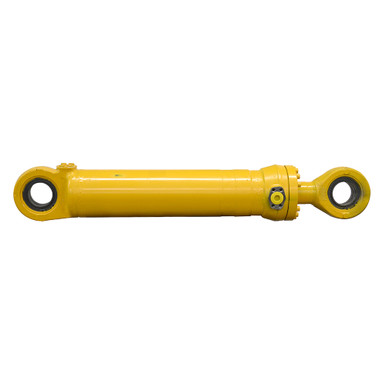

4.934″ (125mm) x 19.375″ (492mm) x 2.755″ (70mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. VOLVO 1108829, welded, double acting hydraulic cylinder.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 4.934″ (125mm) x 19.378″ (492mm)
- Barrel Thickness 10mm
- Gland Retainer Bolt-On
- Pressure 2500 PSI max.
- Rod Dia. 2.755″ (70mm)
- Rod Thickness 2.755″ (70mm)
|
- Ports CODE61-12 FLANGE
- Retracted Length 36.50″
- Gland Face to Rod Pin Center 6.25″
- Shpg. 203 lbs.
|
| END MOUNTINGS |
- Rod End Swivel Eye
- Width 2.432″
- Pin-Center-To-Swivel Eye-End 3.307″
- Swivel Eye Width 1.936″
- Pin Hole 2.757″ (70mm)
|
- Base End Swivel Eye
- Width 2.638″
- Pin-Center-To-Swivel Eye-End 3.207″
- Swivel Eye Width 1.936″
- Pin Hole 2.757″ (70mm)
|
