Description

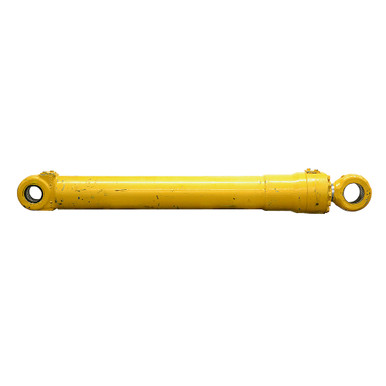

4.921″ (125mm) x 33.5″ x 3.346″ (85mm) DA HYDRAULIC CYLINDER
New, welded cylinder with bolt-on gland cap. “9284250 03631 065019” stamped into cylinder barrel.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke125mm (4.921″) x 33-1/2″
- Barrel Thickness13mm (0.512″)
- Pressure 3000 PSI max.
- Rod Dia. 85mm (3.346″)
|
- Ports 3/4″ Four-Bolt Flange, Code 62
- Retracted Length 56″
- Shpg. 420 lbs.
|
| END MOUNTINGS |
|
- Rod End Tang
- Max Thickness 3-9/16″
- Pin Center to Tang End 3-7/16″
- Pin Hole 90mm (3.543″)
|
- Base End Tang
- Max Thickness 3-9/16″
- Pin Center to Tang End 3-1/16″
- Pin Hole 70mm (2.756″)
|
