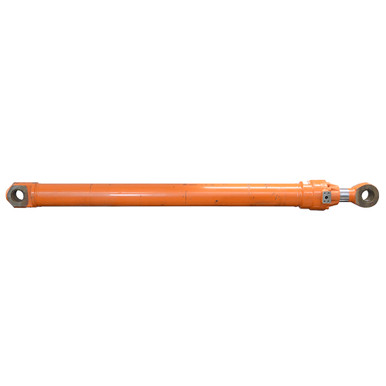

4.91"(125mm) x 63.25"(1607mm) x 3.54"(90mm) Double Acting Hydraulic Cylinder Hitachi 241421797371

4.91″(125mm) x 63.25″(1607mm) x 3.54″(90mm) Double Acting Hydraulic Cylinder Hitachi 241421797371

Original price was: $949.95.Current price is: $189.99.

SKU: 904644 Category:

Description

4.91″(125mm) x 63.25″(1607mm) x 3.54″(90mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. HITACHI numbers on cylinder 241421 797371.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 4.91″(125mm) x 63.25″(1607mm)
  • Barrel Thickness 0.451″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 3.54″(90mm)
  • Ports 4 bolt 3/4″ code 62 flange size 12
  • Retracted Length 87″
  • Gland Face to Rod Pin Center 7.25″
  • Shpg. 536 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 3.76″
  • Pin-Center-To-Tang-End 2.98″
  • Pin Hole 2.81″(70mm)
  • Base End Tang
  • Width 3.76″
  • Pin-Center-To-Tang-End 3.13″
  • Pin Hole 2.81″(70mm)
