Description

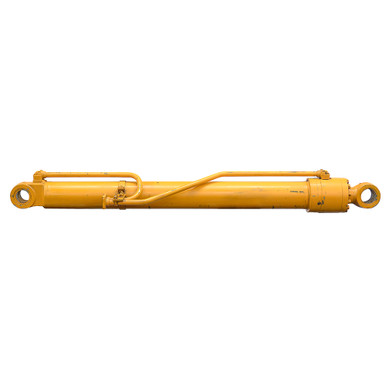

4.904″(125mm) x 51.625″ x 3.34″(85mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Hyundai numbers on cylinder E131-0295
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 125mm(4.904″) x 51.625″
- Barrel Thickness 0.457″
- Gland Retainer Bolt on gland
- Pressure 3000 PSI max.
- Rod Dia. 85mm(3.34″)
|
- Ports 4 bolt 3/4″ code 61 flange size 12
- Retracted Length 72″
- Gland Face to Rod Pin Center 4.5″
- Shpg. 460 lbs.
|
| END MOUNTINGS |
- Rod End Cross-Tube
- O.D. 5.235″
- Width 4″
- Pin Hole 80mm(3.152″)
|
- Base End Tang
- Thickness, Max 3.95″
- Pin-Center-To-Tang-End 2.60″
- Pin Hole 70mm(2.756″)
|
