Description

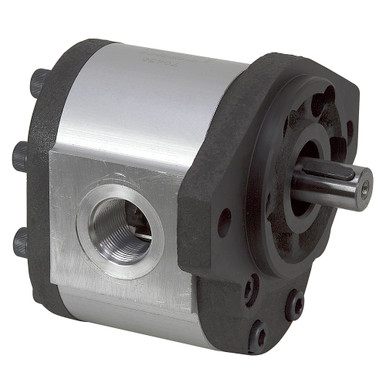

4.76 CU IN DYNAMIC GP-F25-78-P-A HYDRAULIC PUMP
Brand new. Dynamic GP-F25-78-P-A hydraulic gear pump. Constructed of an aluminum center section and cast iron end plates.
SPECIFICATIONS
- Manufacturer Dynamic
- Model 70552
- Build Number GP-F25-78-P-A
- Disp. 4.76 cu. in. / rev.
- Pump Type Gear
- Rotation CCW
- Pressure:
3625 PSI Peak - Speed:
1500 RPM Rated
2300 RPM Max. - Flow:
28.75 GPM Rated
44.07 GPM Max. - Mount 2 bolt SAE B
- Shaft 7/8″ dia. x 1.81″ long with 1/4″ wide keyway
- Rqd. Filtration 25 micron
- Inlet Port SAE 20
- Outlet Port SAE 16
- Size 6.73″ x 6.85″ x 6.32″
- Shpg. 26 lbs.
