Description

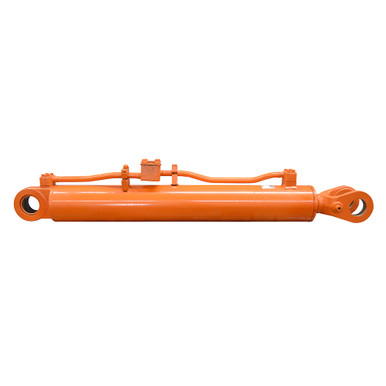

4.728″(120mm) x 31.172″(790mm) x 2.754″(70mm) HYD CYL
Unused old inventory. DOOSAN 440-00243A, welded, double acting hydraulic cylinder.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 4.728″(120mm) x 31.172″(790mm)
- Gland Retainer Bolt-on
- Pressure 2500 PSI max.
- Rod Dia. 2.754″(70mm)
- Rod Thickness 2.754″(70mm)
|
- Ports CODE 61 FLANGE 12
- Retracted Length 48.938″
- Gland Face to Rod Pin Center 6.125″
- Shpg. 264 lbs.
|
| END MOUNTINGS |
|
- Rod End Clevis
- Outside Width 5.398″
- Inside Width 3.195″
- Throat Depth 5.25″
- Pin Hole 2.566″(65mm)
|
- Base End Tang
- Width 2.967″
- Pin-Center-To-Tang-End 2.6″
- Pin Hole 2.563″(65mm)
|
