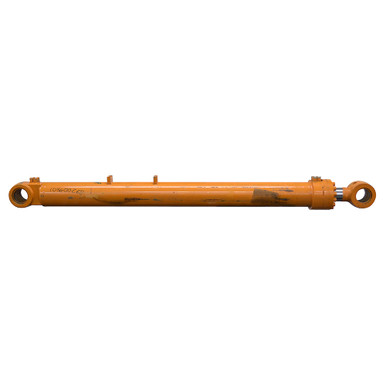

4.72″(120mm) x 53.34″(1355mm) x 3.15″(80mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. VOLVO double acting hydraulic cylinder. Numbers on cylinder 1046-00260.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 4.72″(120mm) x 53.34″(1355mm)
- Barrel Thickness 0.4″
- Gland Retainer Bolt on
- Pressure 3000 PSI
- Rod Dia. 3.15″(80mm)
|
- Ports 4 bolt 3/4″ code 61 flange size 12
- Retracted Length 76″
- Gland Face to Rod Pin Center 6.5″
- Shpg. 558 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Width 3.93″
- Pin-Center-To-Tang-End 3″
- Pin Hole 3.15″(80mm)
|
- Base End Tang
- Width 5.09″
- Pin-Center-To-Tang-End 2.85″
- Pin Hole 3.15″(80mm)
|
