4.72"(120mm) x 12.75"(324mm) x 2.75"(70mm) Double Acting Hydraulic Cylinder Terex 2244486

4.72″(120mm) x 12.75″(324mm) x 2.75″(70mm) Double Acting Hydraulic Cylinder Terex 2244486

Original price was: $249.95.Current price is: $62.49.

SKU: 904808 Category:

Description

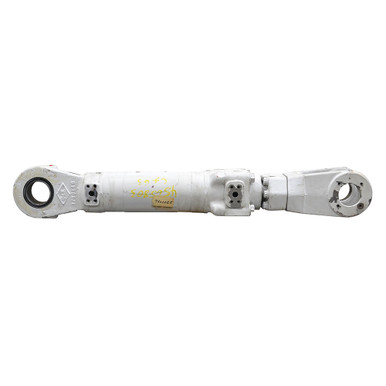

4.72″(120mm) x 12.75″(324mm )x 2.75″(70mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. TEREX double acting hydraulic cylinder. Numbers on cylinder 2244486.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 4.72″(120mm) x 12.75″(324mm)
  • Barrel Thickness 0.518″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 2.75″
  • Ports 4 bolt 3/4″ code 62 flange size 12
  • Retracted Length 43″
  • Gland Face to Rod Pin Center 13.75″
  • Shpg. 302 lbs.
END MOUNTINGS
  • Rod End Clevis
  • Outside Width 6.46″
  • Inside Width 3.34″
  • Throat Depth 9″
  • Pin Hole 3.15″(80mm)
  • Base End Swivel Eye
  • Width 2.52″
  • Pin-Center-To-Tang-End 4.76″
  • Swivel Eye Width 3″
  • Pin Hole 3.15″(80mm)
