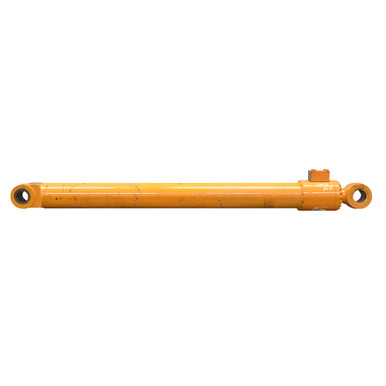

4.69"(119mm) x 54.50" x 3.15"(80mm) Double Acting Hydraulic Cylinder 1040-94030

4.69″(119mm) x 54.50″ x 3.15″(80mm) Double Acting Hydraulic Cylinder 1040-94030

Original price was: $449.95.Current price is: $89.99.

SKU: 904633 Category:

Description

4.69″(119mm) x 54.50″ x 3.15″(80MM) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder 1040-94030.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 4.69″(119mm) x 54.5″
  • Barrel Thickness 0.500″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 3.15″(80mm)
  • Ports 4 bolt 3/4″ code 61 flange size 12
  • Retracted Length 75-3/8″
  • Gland Face to Rod Pin Center 4.50″
  • Shpg. 493 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 3.92″(100mm)
  • Pin-Center-To-Tang-End 2.88″(73mm)
  • Pin Hole Dia. 2.95″(75mm)
  • Base End Tang
  • Width 3.92″(100)
  • Pin Center to Tang End 2.62″(67mm)
  • Pin Hole Dia. 2.56″(65mm)
