Description

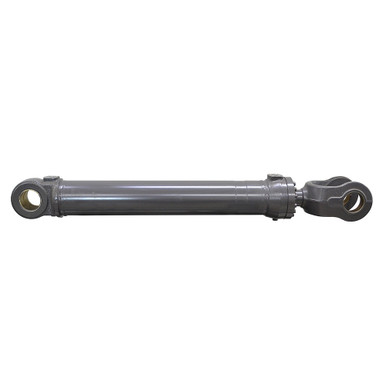

4.68″(120mm) x 28.75″(730mm) x 2.76″(70mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. VOLVO double acting hydraulic cylinder. Numbers on cylinder 11107648.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 4.68″(120mm) x 28.75″(730mm)
- Barrel Thickness 0.4″
- Gland Retainer Bolt on
- Pressure 3000 PSI
- Rod Dia. 2.76″(70mm)
|
- Ports 4 bolt 3/4″ code 62 flange size 12
- Retracted Length 49.25″
- Gland Face to Rod Pin Center 9.25″
- Shpg. 305 lbs.
|
| END MOUNTINGS |
- Rod End Clevis
- Outside Width 6.65″
- Inside Width 4.35″
- Throat Depth 7.55″
- Pin Hole 3.15″(80mm)
|
- Base End Tang
- Width 4.24″
- Pin-Center-To-Tang-End 3.03
- Pin Hole 3.15″(80mm)
|
